Epoxy Resin Insulated Current Transformer 10kV High Voltage Transformer

Name: Epoxy Resin Insulated Current Transformer 10kV High Voltage Transformer
Brand: MacweyTEK
Price: 120 USD

Brand Name : MacweyTEK

Model Number : JDZW-10R

Certification : IEC

Place of Origin : China

MOQ : 1 piece

Price : $120

Payment Terms : T/T

Supply Ability : 50000

Delivery Time : 18 days

Packaging Details : wooden case

Name : Name

Rated Voltage Ratio : 10,000V / 100V, 10,000V / 220V, or customized

Rated Secondary Output : 25VA - 300VA (depending on accuracy class)

Accuracy Classes : 0.2, 0.5, 1, 3, 6P

Rated Insulation Level : 12 / 42 / 75 kV

Limit Output : Up to 800VA

Contact Now

JDZW-10R (New Casing) Pillar Resin Insulated Voltage Transformer Outdoor Oil Type High Voltage Current Transformer CT

Product descriptions

The JDZW-10R (New Casing Version) Voltage Transformer is an upgraded pillar-type, epoxy resin cast insulated outdoor VT, designed for 10kV power systems (50Hz / 60Hz). ·Compared with the standard JDZW-10R, the new casing with protective housing provides enhanced mechanical strength, weather resistance, and insulation safety. ·It is suitable for voltage measurement, energy metering, and relay protection in outdoor medium-voltage systems. ·Compliant with IEC186 and GB1207-2006 standards, ensuring long-term reliable performance.

Key Features – JDZW-10R New Casing Version
·Protective Housing (Sheath Design): Improves anti-UV, anti-aging, and waterproof performance, extending service life in harsh outdoor conditions. ·Epoxy Resin Insulation: Fully cast structure for high durability, strong insulation, and safe operation. ·Compact & Lightweight: Easy installation in any position. ·Secondary Terminal Protection: Equipped with cover and anti-theft design, ensuring secure connections. ·Outdoor Reliability: Resistant to arcing, UV rays, and environmental stressors.

Service conditon ·Ambient temperature: -25°C ~ +40°C ·Altitude: ≤2000m ·Humidity: ≤95% RH ·Pollution class: Class II compliant ·Vibration resistance: Passed 0.4g vibration test Construction & Advantages
·New Protective Casing : Additional safety layer for better resistance to pollution, dust, and mechanical damage. ·Steel channel base with four mounting holes ensures easy and stable installation. ·Longer life cycle: Improved resistance to weathering compared with the standard version. ·Compliance: Meets GB20840.3-2013, GB20840.1-2010 partial discharge standards. Technical Parameters
·Rated voltage ratio: 10,000V / 100V, 10,000V / 220V, or customized ·Rated secondary output: 25VA – 300VA (depending on accuracy class) ·Accuracy classes: 0.2, 0.5, 1, 3, 6P ·Rated insulation level: 12 / 42 / 75 kV ·Limit output: up to 800VA ·Partial discharge: ≤20pC Customizable voltage ratios, outputs, and casing options are available.

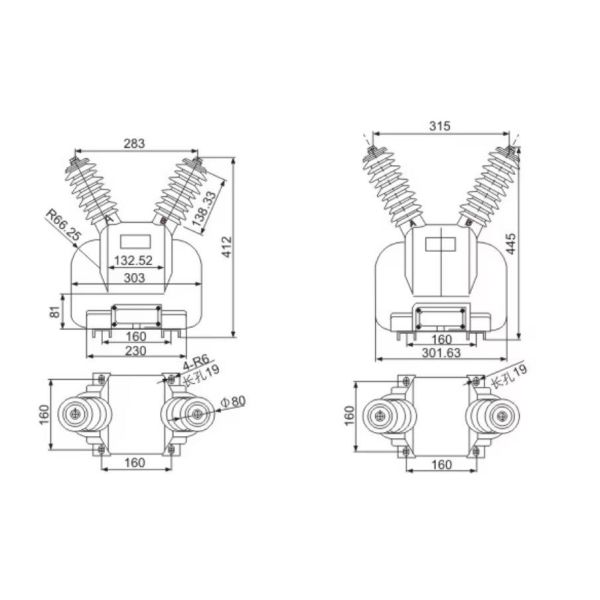

Outline & Dimensions
