Epoxy Resin Contact Box 24KV APG Technology For Insulation

12kv 24kv Switchgear Red Epoxy Resin Contact Box Insulator Cabinet 1600A Contact Box

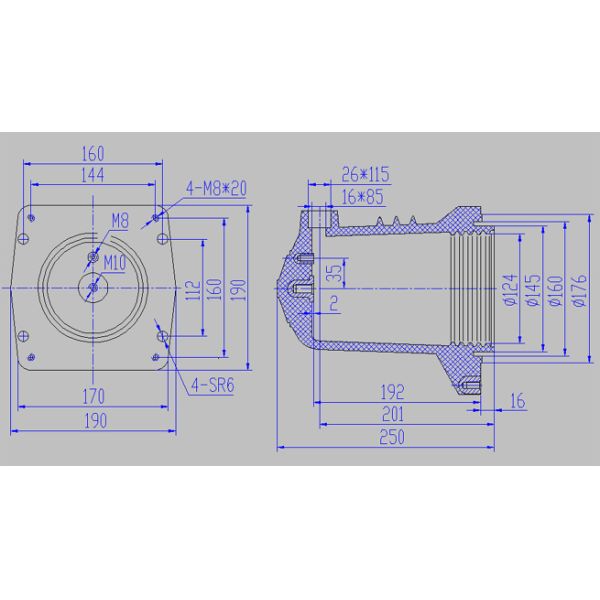

Model No: CHN3-12KV-190
Material: Epoxy Resin
Rated Current: ≤1600A
Rated Voltage: 12KV
Technology: APG technology
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Conditions:
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;
4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.


Technical Date &Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and
lightning impulse voltage (peak value)of 75KV;
2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in
rated current condition;
